The system comprises an Antenna Control Unit (ACU), Tracking Receiver Unit (TRU) and a Power Drive Unit (PDU) which are linked via dedicated Ethernet connections. This provides flexibility in locating the key system components, allows for variable separation distances and provides immunity to electrical ground plane transients.

Key Features:

• Tracking, Pointing, and Acquisition modes

• Single or multiple drives per axis, multiple axes

• AZ/EL, X-Y, HA/Dec, and AZ/EL/Tilt pedestals

• GEO, LEO, TT&C, RADAR, or Celestial applications

• Single or Multi-Band operation

• Wide dynamic range and fine control resolution



Control units:

Antenna Control Unit

The Antenna Control Unit (ACU) is the primary control and monitor interface point for the entire system, featuring embedded processing and a friendly touch screen windowed interface.

• Features of the ACU are:

• Detailed status with color enhancement

• Easy touch screen operation

• Informative display with full text color readouts

• Extensive diagnostic monitoring and test capabilities

• Antenna and satellite simulators

• Time based active parameter display

• Supervisory Control Link (Ethernet; TCP/IP or RS-232/422)

ACU Options

• Time Synchronization via optional NTP, IRIG-B or 1PPS

• Fiber Optic Ethernet and E-Stop

• Tracking Receiver Display with Spectrum Analyzer

• Dual Ethernet

Tracking Receiver (500 series)

• Beacon or Carrier

• Monopulse or Signal Strength for Optrack

• Digital Signal Processor (DSP) Based Receiver

Portable Maintenance Unit

The Portable Maintenance Unit (PMU) provides manually commanded, bi-directional control of all axes. It has the following features:

• Hand held ruggedized unit with a 50-ft pendant cable for convenient local operation at the antenna

• Backup means of moving antenna and is ACU independent

• Four line, 20 character display for axis positions, tracking signal strength, mode and scrolling status messages

• Modes include position jog, Hi/Lo speed (variable)

• Weather proof access junction boxes at convienient antenna locations

• Enable/Disable per axis

Manual Control Unit

The Manual Control Unit (MCU) provides manually commanded, bi-directional control of all axes.

• Slim, 1RU chassis

• PMU functionality

System Options

• CE Certified

• Fiber Optic ACU-PDU Link

• SNMP Monitor and Control

• Redundancy

• Manual Control Unit

• Rack mount Tracking Receivers

• Stainless Steel PDU for Salt Environment

• Extended temperature ranges

• Extended Warranty

• High level EMI Suppression

• PDU configurable for various motor sizes and polarization controls

• Axis Stow Pin Control

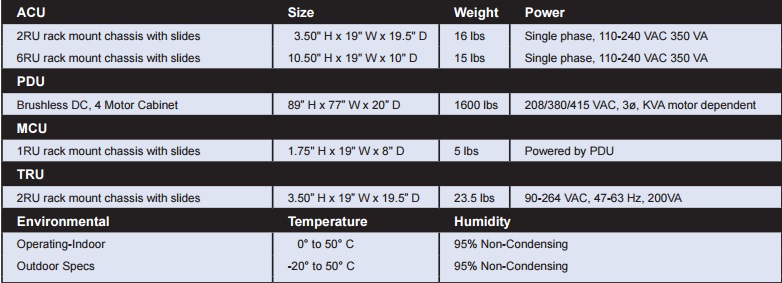

Specifications:

Подробнее.
