Tracking Receiver – Model 500 Series

The Model 500 series of tracking receivers provides a high quality, cost effective solution as a beacon receiver for satellite tracking, spectrum analyzer, or carrier monitoring and uplink power control (UPC) receiver source for the NetMAC M&C system.

  • The Receiver is an integrated rack mounted (2RU) chassis that includes:

  • Dual touch screen display system with intuitive user interface and scroll wheel

  • Embedded control and DSP processors

  • Digital or analog receiver(s), or both

  • DVB receiver for aiding target identification

  • Up to 5 internal block down converters for any frequency band combination from L through Ka

  • Dual 100MB Ethernet and EIA-422 serial ports (fiber optic interface optional)

  • Internal L-Band test signal generator

  • Available as 900 series Antenna Control Unit with integral 500 series receivers

  • Ultra-Wideband 18/36/72 MHz instantaneous bandwidth version optional

The RF front end down-converts input signals in two stages: from L-band to an 869 MHz IF and then from 869 to 10.7 MHz. For analog operation, the 10.7 MHz signals are down-converted to 455 kHz. For digital receiver operation, the 10.7 MHz signals are passed through a high order passive antialiasing filter and coupled via a differential transformer to the inputs of an A/D converter. The ADC inputs are digitized at 16 MHz and are transferred to a 500 MHz, 32-bit Digital Signal Processor for real-time analysis.

Models:

  • Model 520 - Analog receiver with optional internal BDCs

  • Model 550 – Digital receiver with spectrum analyzer and optional internal BDCs.

  • Model 570 – Dual Digital/Analog receiver with full range spectrum analyzer and optional internal BDCs



Key Features:

  • Configurable for tracking receiver, spectrum analyzer, UPC or carrier monitoring via M&C

  • Inputs for 950-2150 MHz L-Band, single or multiband with converters for S/C/X/Ku/Ka

  • Single or dual polarization inputs

  • Acquire C/No: 35 dB-Hz digital, 40 dB-Hz Analog

  • Single or dual internal receiver options

  • Dynamic range: > 90 dB

  • Monopulse capability (with optional RF plate)

  • Quick-Lock acquisition (<1 second)

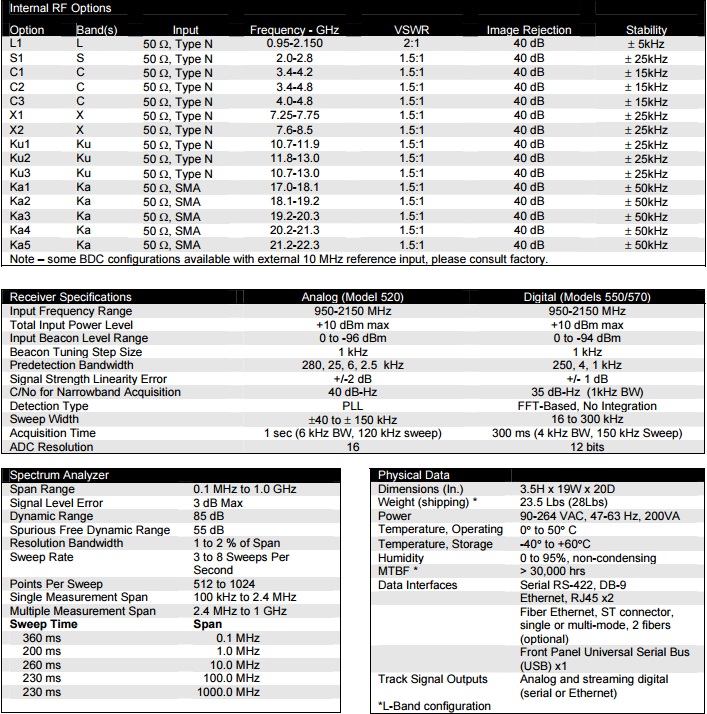

Specifications:



Подробнее.
