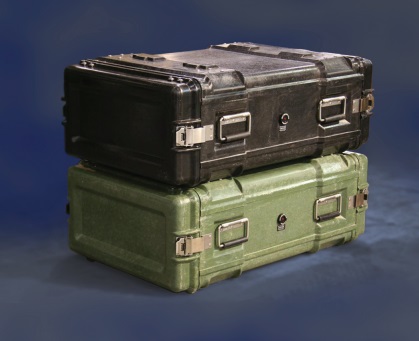

General Dynamics SATCOM Technologies’ 2400, 2800 and 3400 Series Rackmount Cases provide exceptional equipment protection with the added utility of slide-mounted 19-inch (48.2 cm) racks. Slide-out racks allow unlimited access to electronic equipment during installation, integration and maintenance. The Rackmount Cases are manufactured from SATCOM Technologies strong GMT (Glass Mat Thermoplastic) composite material. GMT’s extreme stiffness, lightweight and high impact-absorbing qualities have made it the composite material of choice for impact-absorbing automotive components. SATCOM Technologies’ GMT case shells provide extraordinary impact resistance and rugged durability at temperature ranges exceeding -20° F (-53.88° C) to +185°F (85° C).

Rugged and Versatile: Designed to be lightweight and durable, the Rackmount Cases meet or exceed all MILSTD-810F performance testing for electronic enclosures to withstand the effects of the harshest environments.

Optimum Protection:– The General Dynamics 2400, 2800 and 3400 Series Rackmount Cases provide excellent shock and vibration protection for electronic equipment of all types. Maximum sway space inside the enclosure provides the utmost attenuation of impact energy and unequaled shock and vibration protection.

Key Features:

  • Durable GMT (Glass Mat Thermoplastic)Composite Case Exterior „

  • Slide-Out Riveted Aluminum CEA 310 Rack with a Minimum of Eight Multi-Axis Shock Mounts „

  • 10-32 Nut-Bar Fasteners for Optional Equipment Panels „

  • Two Removable Covers „

  • External Draw Pull Latches „

  • Watertight Closures „

  • Molded-in, Case-to-Case Stacking Standard „

  • Recessed Hardware „

  • Available from 3U-14U in Rack Height with Case Front-to-Back Depths of 24” (60.9 cm) and 28.5” (72.3 cm) with Rack Depths of 20” (50.8 cm) and 24” (60.9 cm). „

  • Also available in 3U-9U Rack Heights at 34” (86.4 cm) Case Frontto-Back Depth and 30” (76.2cm) Rack Depth. „

  • Durable at Temperatures Exceeding -20° F (-53.88° C) to +185° F (85° C) „

  • Designed for Equipment Weights up to 120 lbs (54.4 kg)

  • Standard „ Series 3400 Cases May be Custom Reinforced to Accommodate Equipment Weights up to 180 lbs (81.6 kg). Maximum Payload Weight is 240 Lbs (108.8 kg).

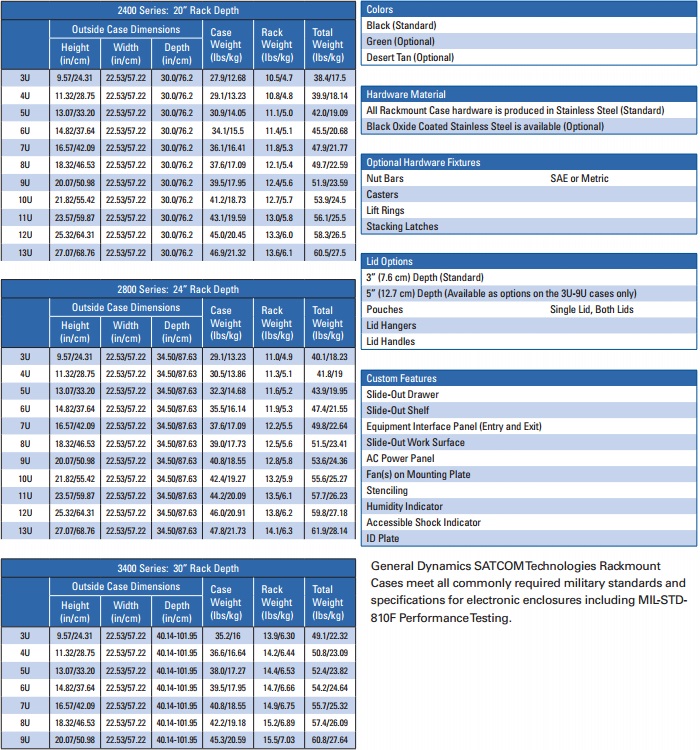

Specifications and Options
